The Metasploit Framework¶

Metasploit-Project is a Ruby-based modular penetration testing platform. Enabling the tester to write, test and execute exploit code, which can be custom-made or taken from a database containing the latest discovered and modularised exploits.

Benefits of Metasploit Framework¶

The framework includes many tools which can test the following:
- Security Vulnerabilities
- Enumerate Networks
- Execute Attacks
- Evade Detection

At it's core the Metasploit Framework is a collection of commonly used tools, which provide an environment readily available and accessible for penetration testing and exploit development.

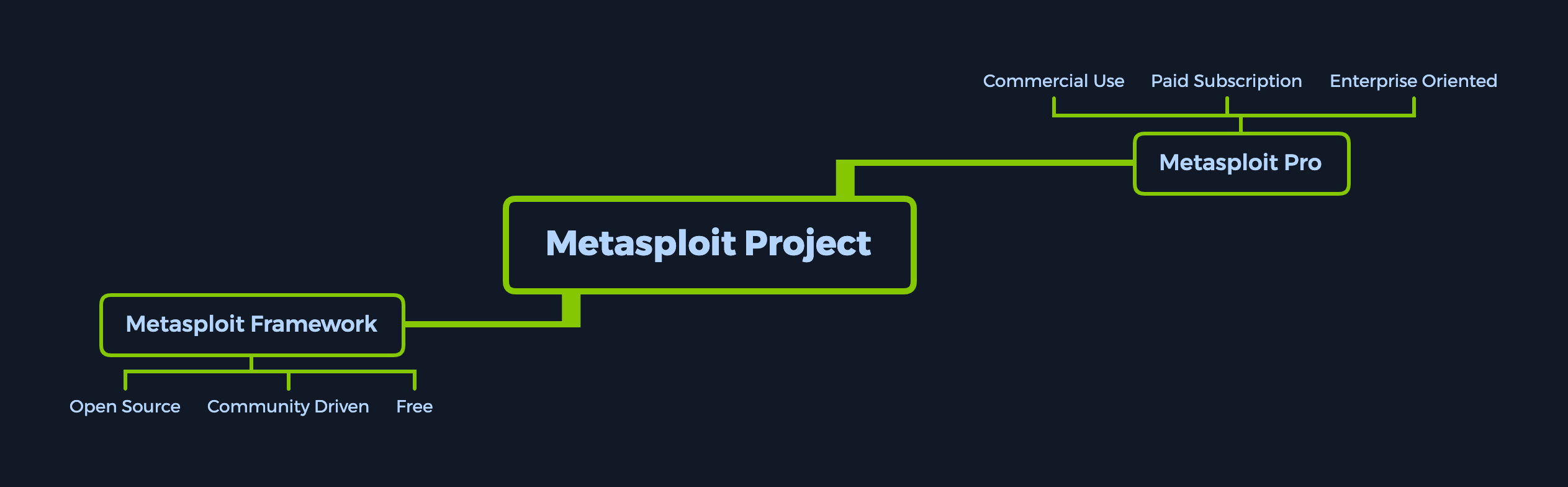

_{Explanation Diagram of the Metasploit Project}

The modules mentioned continuing forward, are actual exploit proof-of-concepts which have already been developed and tested in the wild, and integrated into the framework's database to provide other pen testers with ease of access.

Metasploit Framework is a Swiss army knife and is not a jack of all trades, it provides enough tools to get through common unpatched vulnerabilities and different attack vectors however, it should serve as a tool, and not limit the pen testers ability to think proactively outside of the limitations of the framework.

The Framework provides a plethora of available targets and versions, these combined with an exploit tailor-made to those vulnerable versions with a payload that is sent after the exploit, and will provide access to the system, providing an easy automated way to switch between target connections.

Metasploit Pro¶

Metasploit Project is split into Metasploit Framework which is open-source and Metasploit Pro difference is the pro version has some additional features:
- Task Chains
- Social Engineering
- Vulnerability Validations
- GUI
- Quick Start Wizards
- Nexpose Integration

The Pro version also has its own console which provides extra features, much like the msfconsole.

Metasploit Pro's Features¶

Metasploit Framework Console¶

The msfconsole is the most popular interface to the Metasploit Framework (MSF), providing an "all-in-one" centralised console, allowing the pen tester to efficiently access nearly all options available.

Metasploit MSFConsole Features¶

• It is the only supported way to access most of the features within Metasploit.
• Provides a console-based interface to the Framework.
• Contains the most features and is the most stable MSF console.
• Full readline support, tabbing, and command completion.
• Execution of external commands in MSF console.

Both have extensive databases of available modules, which when combined with external commands i.e.:
- Scanners
- Social Engineering Toolkits
- Payload Generators
Which allow for seamless control and manipulate different vulnerabilities in the wild with the use of sessions and jobs in the same way, tabs in the browser would be seen.

The key piece of information to conclude from this, is that usability is the benefit of having an easy to use user experience.

Understanding The Architecture¶

Important Warning:

It is essential not to have any wildcards that might leave you or your client exposed to data breaches.

By default all base files related to the Metasploit Framework:

Linux¶

• Parrot OS and Kali Linux: /usr/share/metasploit-framework
• Manual Installations (e.g., via Installation Instructions & GitHub): /opt/metasploit-framework
• User-Specific Custom Modules: ~/.msf4/modules

Windows¶

• Default Installation (Installer: C:\metasploit-framework
• User-Specific Custom Modules: %USERPROFILE%\.msf4\modules

MacOS¶

• Manual Installations (e.g., via Installation Instructions, GitHub or Homebrew): /opt/metasploit-framework
• User-Specific Custom Modules: ~/.msf4/modules

Data, Documentation & Lib¶

By default, the base files for the Metasploit Framework are located as follows across different operating systems, with key directories including:

Auxiliary Files¶

Data Folder: Contains auxiliary files, which are supportive resources used by Metasploit modules to perform tasks. These include:
- Wordlists: Text files with lists of common passwords, usernames, or other data for brute-force attacks or testing (e.g., rockyou.txt for password cracking).
- Templates: Predefined files for generating payloads or exploits, like shellcode templates.
- Meterpreter Scripts: Scripts to enhance Meterpreter (a Metasploit payload for remote control), such as scripts to escalate privileges or dump system data.

Core of Metasploit¶

These files are not the core exploits or payloads but help modules function effectively.
- Lib Folder: Contains the core Ruby libraries that power the Metasploit Framework, including its modular architecture and protocol implementations.
- Documentation Folder: Contains all technical details about the project, including READMEs, developer guides, and module documentation.

Modules¶

TheMalevolent1@htb[/htb]$ ls /usr/share/metasploit-framework/modules

auxiliary  encoders  evasion  exploits  nops  payloads  post

Plugins¶

Plugins offer more flexibility when using the msfconsole since it can easily be manually, or automatically loaded as needed to provide extra functionality and automation during an assessment.

TheMalevolent1@htb[/htb]$ ls /usr/share/metasploit-framework/plugins/

aggregator.rb      ips_filter.rb  openvas.rb           sounds.rb
alias.rb           komand.rb      pcap_log.rb          sqlmap.rb
auto_add_route.rb  lab.rb         request.rb           thread.rb
beholder.rb        libnotify.rb   rssfeed.rb           token_adduser.rb
db_credcollect.rb  msfd.rb        sample.rb            token_hunter.rb
db_tracker.rb      msgrpc.rb      session_notifier.rb  wiki.rb
event_tester.rb    nessus.rb      session_tagger.rb    wmap.rb
ffautoregen.rb     nexpose.rb     socket_logger.rb

Scripts¶

Meterpreter functionality (Metasploit Payload, which allows for remote control) and other useful scripts.

TheMalevolent1@htb[/htb]$ ls /usr/share/metasploit-framework/scripts/

meterpreter  ps  resource  shell

Tools¶

Command-Line utilities that can be called directly from the msfconsole menu.

TheMalevolent1@htb[/htb]$ ls /usr/share/metasploit-framework/tools/

context  docs     hardware  modules   payloads
dev      exploit  memdump   password  recon

Exercises¶

Q: Which version of Metasploit comes equipped with a GUI interface?
A: Metasploit Pro

Q: What command do you use to interact with the free version of Metasploit?
A: msfconsole
