Understanding, the various components that formulate a network is essential. It is known that currently, devices are able to communicate with each other, share resources and access the internet with almost uniform consistency.

The question posed is what exactly facilitates this?

The primary components of such a network include:

Most networks, such devices play a crucial role in both data generation and data consumption, like when users stream videos or read web content. End devices serve as the primary user interface to the WWW (World Wide Web) thus enabling users to access network resources and services seamlessly through both wired (Ethernet) and wireless (Wi-Fi/Cellular) connections.

2) Intermediary Devices¶

An intermediary device has the unique role of facilitating the flow of data between end devices, either within a local area network, or between different networks. These devices include: routers, switches, modems, and access points - all of which play crucial roles in ensuring efficient and secure data transmission.

Intermediary devices are responsible for packet forwarding, directing data packets to their destinations by reading network address information and determining the most efficient paths. They connect networks and control traffic to enhance performance and reliability. By managing data flow with protocols, they ensure smooth transmission and prevent congestion. Additionally, intermediary devices often incorporate security features like firewalls to protect certain networks from unauthorised access and potential threats.

Operating at different layers of the OSI Model - for example, routers at the Network Layer (Layer 3) and switches at the Data Link Layer (Layer 2) - use routing tables and protocols to make informed decisions about data forwarding.

A common example is a home network where intermediary devices like routers and switches connect all households - including notebooks, smartphones and smart TVs to the internet enabling communication and access to online resources.

Network Interface Card (NICs)¶

A Network Interface Card (NIC) is a hardware component installed in a computer, or other device, that enables connection to a network. It provides the physical interface between the device and the network media, handling the sending and receiving of data over the network. Each NIC has a unique Media Access Control (MAC) address, which is essential for devices to identify each other, and facilitate communication at the data link layer.

NICs can be designed for wired connections, for such as Ethernet cards that connect via cables, or for wireless connections, like Wi-Fi adapters utilising radio waves. For example a desktop computer might use a wired NIC along with an Ethernet cable to connect to a local network, while a laptop uses a wireless NIC to connect via Wi-Fi.

Routers¶

A router is an intermediary device that plays a hugely important role - the forwarding of data packets between networks, and ultimately directing internet traffic. Operating at the Network Layer (Layer 3) of the OSI Model, routers read the network address information in data packets to determine their destinations.

They use routing tables and routing protocols such as:
- Open Shortest Path First (OSPF)
- Border Gateway Protocol (BGP)

These protocols are used to find the most efficient path for data to travel across interconnected networks, including the internet.

They fulfil this role, by examining incoming data packets and forwarding them toward their destinations, based on IP addresses. By connecting multiple networks, routers enable devices on different networks to communicate. They also manage network traffic by selecting optimal paths for data transmission, which helps prevent congestion - a process known as traffic management. In addition to this, routers can enhance security by incorporating features like firewalls and access control lists, by protecting the network from unauthorised access and potential threats.

Example:¶

In a home network, a router connects all household devices - such as computers, smartphones, and smart TVs - to the internet provided by an Internet Service Provider (ISP). The router directs incoming and outgoing internet traffic efficiently, ensuring that each device can communicate with external networks and with each other.

Switches¶

A switch is another important component, with it's primary job being to connect multiple hosts together within the same network, typically a Local area Network (LAN). Operating at the data link layer (Layer 2) of the OSI model, switches use MAC addresses to forward data only to the intended recipient. This is done by managing data traffic between connected nodes, switches reduce network congestion and improve the overall performance as they enable devices like computers, printers, and servers to communicate directly with each other within the network.

Example:¶

For instance in a corporate office, switches connect employee' computers, allowing for quick file sharing and access to shared resources like printers and servers.

Hubs¶

A hub is a basic (and now antiquated) networking device. It connects multiple devices in a network segment and broadcasts incoming data to all connected ports, regardless of the destination. Operating at the physical layer (Layer 1) of the OSI model, hubs are simpler than switches and do not manage traffic intelligently. This indiscriminate data broadcasting can lead to network inefficiencies and collisions, making hubs less suitable for modern networks.

Example:¶

In a small home network setup from earlier times, a hub might connect to a few computers, but today, switches are preferred due to their better performance and efficiency.

3) Network Media and Software Components¶

Network Media and Software Components are vital elements that enable seamless communication and operation within a network. Network Media, such as cables and wireless signals, provide the physical pathways that connect devices and allow data to be transmitted between them. This includes wired media like Ethernet cables and fibre-optic cables, which offer high-speed connections, as well as wireless media like Wi-Fi and Bluetooth, which provide mobility and flexibility. On the other hand, software components like network protocols and management software define the rules and procedures for data transmission, ensuring that information is correctly formatted, addressed, transmitted, routed, and received.

Network Protocols such as TCP/IP, HTTP, and FTP enable devices to communicate over the network, while network management software allows administrators to monitor network performance, configure devices, and enhance security through tools like software firewalls.

Cabling and Connectors¶

Cabling and connectors are the physical materials used to link devices within a network, forming the pathways through which data is transmitted. This includes the various types of cables mentioned previously, but also connectors like the RJ-45 plug, which is used to interface cables with network devices such as computers, switches, and routers.

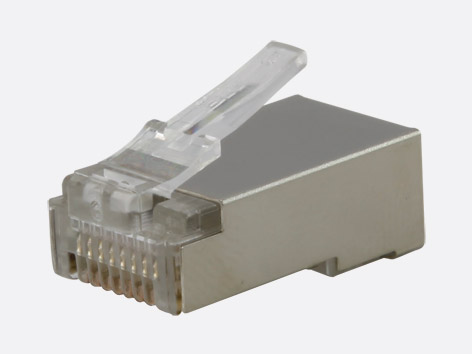

_{RJ-45 Plug (Ethernet)}

The quality and type of cabling and connectors can affect network performance, reliability, and speed.

Example:¶

In an office setting, Ethernet cables with RJ-45 connectors may connect desktops to network switches, enabling high-speed data transfer across the local-area network (LAN).

Network Protocols¶

Network Protocols are the set of rules and conventions that control how data is formatted, transmitted, received, and interpreted across a network. They ensure that devices from different manufacturers, and with varying configurations, can adhere to the same standard and communicate effectively.

Protocols that encompass a wide range of aspects are as follows:
- Data Segmentation
- Addressing
- Routing
- Error Checking
- Synchronisation

Common network protocols include:
- TCP/IP - ubiquitous across all internet communications
- HTTP/HTTPS - The standard for Web Traffic
- FTP - File Transfer Protocol
- SMTP - Email Transmissions

For instance, when a browser is used to access a website, the HTTP or HTTPS protocol dictates how the browser will communicate with the webserver to request and receive the wanted web pages, ensuring that the data is correctly formatted and securely transmitted.

Network Management Software¶

Network management software consists of tools and applications that can be used to monitor, control, and maintain network components, and operations.

These software solutions provide functionalities for:
- Performance Monitoring
- Configuration Management
- Fault Analysis
- Security Management

They help network administrators ensure that the network operates efficiently, remains secure, and can quickly address any issues that arise.

Example:¶

In a corporate environment, the IT department might use network management software, to oversee all devices connected the company network, monitor traffic for unusual activity, update device configurations remotely, and enforce security policies, maintaining optimal network performance and security.

Software Firewalls¶

A Software Firewall is a security application installed on individual computers or devices that monitors and controls incoming and outgoing network traffic based on predetermined security rules. Unlike hardware firewalls that protect entire networks, software firewalls (also called Host-Based Firewalls) provide protection at the device level, guarding against threats that may bypass the network perimeter defences. They help prevent unauthorised access, reject incoming packets that contain suspicious or malicious data, and can be configured to restrict access to certain applications or services.

Example:¶

Most operating systems, include a built0in software firewall, that can be set up to block incoming connections from untrusted sources ensuring that only legitimate network traffic reaches the device.

Note: Linux Command: IPTables

Servers¶

A Server is a powerful computer designed to provide services to other computers, known as clients, over a network.

Servers are the backbone behind websites, email, files, and applications.

In the realm of computer networking, servers play a crucial role by hosting services that clients access.

Example:¶

Web pages, and email services facilitating service provision. They enable resource sharing by allowing multiple users to access resources like files and printers.

Servers also handle data management by storing and managing data centrally, which simplifies backup processes and enhances security management. Additionally, they manage authentication by controlling user access and permissions, across multiple components in the network.

Servers often run specialised operating systems optimised for handling multiple, simultaneous requests in what is known as Client-Server Model, where the server waits for requests from clients and responds accordingly.

Conclusion¶

As witnessed, the technology stack needed for world-wide computer networking requires multiple components. End devices that the users' primary interface with the network, intermediary devices manage data traffic and connectivity, and servers provide resources and servers. Together, they enable the seamless flow of information that powers modern communication.

Exercises¶

Q: What type of network cable is used to transmit data over long distances with minimal signal loss?
A: Fiber-Optic

Q: Which protocol manages data routing and delivery across networks?
A: TCP/IP

Q: What software is used to oversee and administer network operations? (Format: 3 words)
A: Network Management Software

Q: What software is used to protect individual devices from unauthorized network access? (Format: 1 word)
A: Firewall

Q: What type of cable is used to connect components within a local area network for high-speed data transfer?
A: Ethernet

Q:  Which device connects multiple networks and manages data traffic to optimize performance?
A: Router
