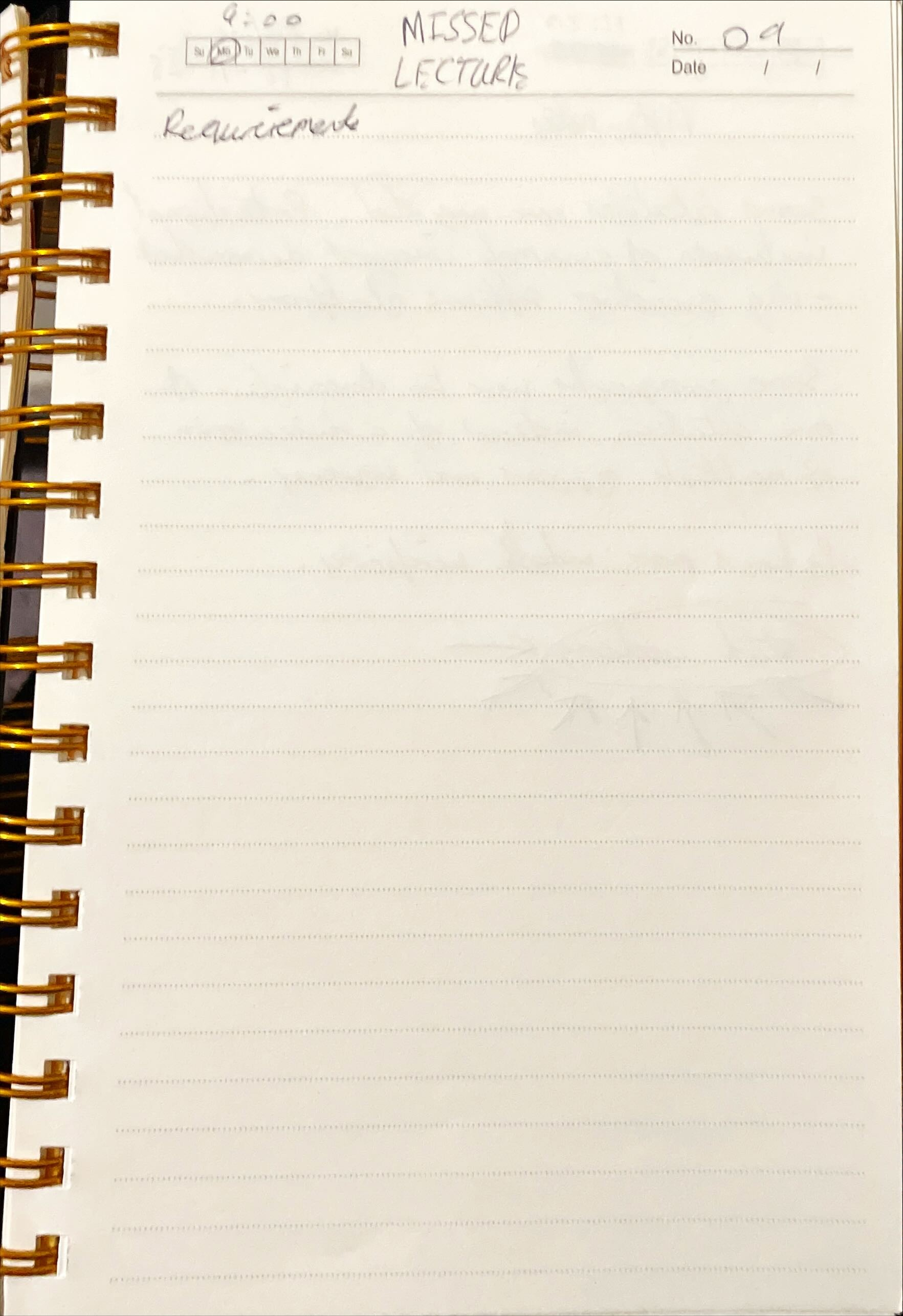

Written Notes

CO3008 L9 - N1.png


Lecture Objectives

  • Understand the different types of requirements that should be considered/specified in the project.
  • Explore approaches to requirements analysis and specification
  • Describe the role of Requirements Engineering
  • Select an approach appropriate for the specific project
  • Have a plan for specifying requirements in the next report deliverable.

Managing Your Supervisor

  • Gap in summative submissions now until midway through semester 2
  • Don't lose momentum steady progress throughout the year is optimal
  • Your supervisor is not just a marker they are a resource.
  • To obtain the most out of the supervisor is it best to put some thought into communications with them to do the following:
  • Show them that thought has been put into the questions being asked
  • Go to meetings with a clear objective so this can be communicated
  • Be prepared to show things and be prepared to talk about them.

Types of Requirements

User Requirements

Statements in natural language plus diagrams of the services the system provides and its operational constraints. Written for customers.

System Requirements

A structured document setting out detailed descriptions of the system's functions, services and operational constraints. Defines what should be implemented so may be part of a contract between client and contractor.

Mentcare Example

User Requirements Definition

The Mentcare system shall generate monthly management reports showing the cost of drugs prescribed by each clinic during that month.

System Requirements Specification

1.1. On the last day of each month, a summary of the drugs prescribed, their cost and the prescribing clinics shall be generated.
1.2. The system shall generate the report for printing after 17.30 on the last working day of the month.
1.3. A report shall be created for each clinic and shall list the individual drug names, the total number of prescriptions, the number of doses prescribed and the total cost of the prescribed drugs.
1.4. If drugs are available in different dose units (e.g. 10mg, 20mg, etc) separate reports shall be created for each dose unit.
1.5. Access to drug cost reports shall be restricted to unauthorised users as listed on a management access control list.


Agile Methods and Requirements

  • Many agile methods argue that producing detailed system requirements is a waste of time as requirements are not well known or change so quickly
  • A formal requirements document is therefore out of date
  • Agile methods usually utilise Incremental Requirements Engineering and may express requirements as user stories.
  • This is practical for business systems but problematic for systems that may require pre-delivery analysis (e.g. critical systems) or systems developed by several teams.

Requirements Engineering

  • The process of establishing the services that a customer requires from a system and the constraints under which it operates and is developed.
  • The system requirements are the descriptions of the system services and constraints that are generated during the process.
graph TD
    %% Styling Definitions
    classDef cloudNode fill:#d5e8d4,stroke:#82b366,stroke-width:2px,color:#333;
    classDef boxNode fill:#e1e1e1,stroke:#666,stroke-width:2px,color:#333;
    classDef charNode fill:#fff,stroke:#333,stroke-dasharray: 5 5,color:#333;

    %% Subgraph for the Left Column (Characteristics)
    subgraph Characteristics ["Characteristics of Information"]
        direction TB
        C1["May be unclear,<br/>inconsistent or<br/>infeasible"]:::charNode
        C2["Tend to be clear,<br/>consistent and<br/>feasible"]:::charNode
        C3["Detailed"]:::charNode
    end

    %% Subgraph for the Right Column (The Process)
    subgraph Process ["Requirements Engineering Process"]
        direction TB
        R1([Stakeholder<br/>Intentions]):::cloudNode
        R2[Stakeholder<br/>Requirements]:::boxNode
        R3[System<br/>Requirements]:::boxNode
        R4[Component<br/>Requirements]:::boxNode
    end

    %% Vertical Flow - Characteristics
    C1 --> C2
    C2 --> C3

    %% Vertical Flow - Process
    R1 --> R2
    R2 --> R3
    R3 --> R4

    %% Connections between Characteristics and Process (Horizontal)
    C1 -- "Needs, Goals, Objectives<br/>(Problem Space)" --> R1

    %% Note: Linking C2 to R2 and R3 to represent the flow in the image
    C2 -- "Necessary features,<br/>meets need, verifiable" --> R2
    C2 -. "Requirements of specific system<br/>(Multiple systems possible)" .-> R3

    C3 --> R4

    %% Feedback Loops (Representing the right-side bracket)
    R4 -.->|"Feedback"| R1
    R3 -.-> R1
    R2 -.-> R1

    %% Link Style for cleaner look
    linkStyle default stroke:#333,stroke-width:1px;

What Do Requirements Cover

graph TB
    subgraph FR [Functional Requirements]
        direction TB
        F1([Functionality])
        F1_Desc["What the software is supposed to do"]
        F1 --- F1_Desc
    end

    subgraph NFR [Non-Functional Requirements]
        direction TB
        NF1([External Interfaces])
        NF1_Desc["Interaction with people, hardware & software"]

        NF2([Performance])
        NF2_Desc["Speed, availability, response, throughput..."]

        NF3([Attributes])
        NF3_Desc["Portability, accuracy, maintainability, security..."]

        NF1 --- NF1_Desc
        NF2 --- NF2_Desc
        NF3 --- NF3_Desc
    end

    %% Styling for visual separation
    style FR fill:#e1f5fe,stroke:#0277bd,stroke-width:2px,color:#000
    style NFR fill:#fff3e0,stroke:#ef6c00,stroke-width:2px,color:#000
    style F1 fill:#b3e5fc,stroke:#0277bd
    style NF1 fill:#ffe0b2,stroke:#ef6c00
    style NF2 fill:#ffe0b2,stroke:#ef6c00
    style NF3 fill:#ffe0b2,stroke:#ef6c00

Functional Requirements Example

  • A user shall be able to search the appointments lists for all clinics.
  • The system shall generate each day, for each clinic, a list of patients who are expected to attend appointments that day.
  • Each staff member using the system shall be uniquely identified by his or her 8-digit employee number.
  • Problems arise when functional requirements are not precisely stated.
  • Ambiguous requirements may be interpreted in different ways by developers and users.
  • Consider the term ‘search’ in first requirement.
  • User intention – search for a patient name across all appointments in all clinics.
  • Developer interpretation – search for a patient name in an individual clinic. User chooses clinic then search.

Non-Functional Requirements

  • These define system properties and constraints e.g. reliability, response time and storage requirements.
  • Process requirements may also be specified mandating a particular IDE, programming language or development method.
  • Non-functional requirements may be more critical than functional requirements. If these are not met, the system may be useless.

Non-Functional Requirement Types

graph TB
    NFR([Non-functional requirements])

    %% First Level
    PR([Product requirements])
    OR([Organizational requirements])
    ER([External requirements])

    NFR --- PR
    NFR --- OR
    NFR --- ER

    %% Product Requirements Sub-tree
    PR --- UR(Usability requirements)
    PR --- EFR(Efficiency requirements)
    PR --- DR(Dependability requirements)
    PR --- SR(Security requirements)

    EFR --- PFR(Performance requirements)
    EFR --- SPR(Space requirements)

    %% Organizational Requirements Sub-tree
    OR --- ENR(Environmental requirements)
    OR --- OPR(Operational requirements)
    OR --- DVR(Development requirements)

    %% External Requirements Sub-tree
    ER --- RGR(Regulatory requirements)
    ER --- ETR(Ethical requirements)
    ER --- LGR(Legislative requirements)

    LGR --- ACR(Accounting requirements)
    LGR --- SSR(Safety/security requirements)

    %% Styling
    classDef main fill:#e1f5fe,stroke:#01579b,color:#000
    classDef mid fill:#e3f2fd,stroke:#0288d1,color:#000
    classDef sub fill:#e0f7fa,stroke:#00acc1,color:#000
    classDef leaf fill:#e0f2f1,stroke:#00897b,color:#000

    class NFR main
    class PR,OR,ER mid
    class UR,EFR,DR,SR,ENR,OPR,DVR,RGR,ETR,LGR sub
    class PFR,SPR,ACR,SSR leaf

Demonstrating a Structured Approach

A good set of requirements will require analysis of the problem domain.
- How were the requirements arrived at?

UML diagrams can help with analysis and specification.
- Use Case Model: Diagram & Descriptions
- Functional, System Behaviour as seen by the user.
- Activity Diagrams
- Model Business Activities (processes)
- OR ANYTHING that requires a specific process (e.g. Player Decision Making)


Use Cases

Functional and Non-Functional Requirements

graph TB
    FR([Functional Requirements])

    %% Level 1: Categories
    PA([Patient Administration])
    RM([Record Management])
    SR([System Reporting])
    CO([Clinical Operations])

    FR --- PA
    FR --- RM
    FR --- SR
    FR --- CO

    %% Level 2: Specific Functions (From Use Case Diagram)
    PA --- RP(Register patient)
    PA --- VPI(View personal info)

    RM --- VR(View record)
    RM --- ER(Edit record)

    SR --- ES(Export statistics)
    SR --- GR(Generate report)

    CO --- SC(Setup consultation)

    %% Styling (Matching the NFR Diagram style)
    classDef main fill:#e1f5fe,stroke:#01579b,color:#000
    classDef mid fill:#e3f2fd,stroke:#0288d1,color:#000
    classDef leaf fill:#e0f2f1,stroke:#00897b,color:#000

    class FR main
    class PA,RM,SR,CO mid
    class RP,VPI,VR,ER,ES,GR,SC leaf
graph TB
    NFR([Non-functional requirements])

    %% Level 1: Main Categories
    PR([Product requirements])
    OR([Organizational requirements])
    ER([External requirements])

    NFR --- PR
    NFR --- OR
    NFR --- ER

    %% Level 2: Product Sub-categories
    PR --- UR(Usability requirements)
    PR --- EFR(Efficiency requirements)
    PR --- DR(Dependability requirements)
    PR --- SR(Security requirements)

    %% Level 3: Efficiency Sub-categories
    EFR --- PFR(Performance requirements)
    EFR --- SPR(Space requirements)

    %% Level 2: Organizational Sub-categories
    OR --- ENR(Environmental requirements)
    OR --- OPR(Operational requirements)
    OR --- DVR(Development requirements)

    %% Level 2: External Sub-categories
    ER --- RGR(Regulatory requirements)
    ER --- ETR(Ethical requirements)
    ER --- LGR(Legislative requirements)

    %% Level 3: Legislative Sub-categories
    LGR --- ACR(Accounting requirements)
    LGR --- SSR(Safety/security requirements)

    %% Styling
    classDef main fill:#e1f5fe,stroke:#01579b,color:#000
    classDef mid fill:#e3f2fd,stroke:#0288d1,color:#000
    classDef sub fill:#e0f7fa,stroke:#00acc1,color:#000
    classDef leaf fill:#e0f2f1,stroke:#00897b,color:#000

    class NFR main
    class PR,OR,ER mid
    class UR,EFR,DR,SR,ENR,OPR,DVR,RGR,ETR,LGR sub
    class PFR,SPR,ACR,SSR leaf

Mentcare Use Case Example

graph LR
    %% Define the System Boundary
    subgraph System [Medical System]
        direction TB
        UC_RP([Register patient])
        UC_VPI([View personal info.])
        UC_VR([View record])
        UC_ER([Edit record])
        UC_SC([Setup consultation])
        UC_ES([Export statistics])
        UC_GR([Generate report])
    end

    subgraph Actors [Stakeholders]
        %% Define Actors
        A_MR[Medical receptionist]
        A_Nurse[Nurse]
        A_Manager[Manager]
        A_Doctor[Doctor]

        %% Relationships - Receptionist
        A_MR --- UC_RP
        A_MR --- UC_VPI

        %% Relationships - Nurse
        A_Nurse --- UC_VR
        A_Nurse --- UC_ER

        %% Relationships - Manager
        A_Manager --- UC_VPI
        A_Manager --- UC_ES
        A_Manager --- UC_GR

        %% Relationships - Doctor
        A_Doctor --- UC_VR
        A_Doctor --- UC_ER
        A_Doctor --- UC_SC
        A_Doctor --- UC_GR
    end

    %% Styling to mimic UML
    classDef actor fill:#fff,stroke:#000,stroke-width:2px;
    classDef usecase fill:#f9f9f9,stroke:#000,stroke-width:1px,rx:20,ry:20;

    class A_MR,A_Nurse,A_Manager,A_Doctor actor
    class UC_RP,UC_VPI,UC_VR,UC_ER,UC_SC,UC_ES,UC_GR usecase

    %% Style the system boundary
    style System fill:#fff,stroke:#333,stroke-width:2px,stroke-dasharray: 5 5
    style Actors fill:#fff,stroke:#333,stroke-width:2px,stroke-dasharray: 5 5

Communicating Requirements

  • Requirements should be stated concisely and clearly
  • How is it known when a requirement has been met?
  • Is it measurable/testable? Makes life easier in later sections of the report
  • Is it achievable?
  • Summarise in the report and save any detail for an appendix. E.g. could include use case diagram in the report (doesn't affect word count) and associated use case descriptions in an appendix.
  • Practice communicating the functional and non-functional requirements in a supervision discussion
  • In addition to subtly planting the seed with the supervisor that requirement gathering is being taken seriously and also helps check that the requirements are clear, appropriate, and testable.

User Stories

Represent functionality that is valuable to user or owner of system.
- Not a full description
- A note/marker that something is needed.
- In simple language: user/problem domain
- Starts the process of developers understanding

Detail obtained through conversation between user/client and developer.
- Possibly with prototyping
- A story promises a future conversation

People naturally think in narratives/stories.
As people, humans have a grasp of:
- characters
- desires
- motivations

First thing to think about in user stories is:
- The Character/Role
- Who is this task being done for
- Who's perspective do we need to consider when
- Designing a feature.

Second thing to think about in user stories is:
- What is it that is wanted to be accomplished? (E.g. functionality)
- Usually forms the main part of a user story.

Third thing to think about in user stories is:
- Motivation for wanting the functionality.
- Why does this character want this thing?
- How is it going to serve this this person?
- Motivation provides context.

Often Needs will change according to user roles.

User Story Example

As a Sububan Commuter,
I want a car,
So that I can drive to work.

User Story Format

  • As a <type of user>
  • I want <some function>
  • So that <some reason>

Quote

Other formats can be used but this one explicitly identifies:
- Who?
- What is needed?
- Why?


Comparing User Stories To Use Case Models

  • User stories - brief indication of a need/feature
  • Should indicate user type/role and reason for feature
    • Try not to be too generic with reason
  • To be expanded by discussion with stakeholders.

Summary

  • Explored Types of Requirements
    • Functional vs Non Functional

  • Explored Approaches to requirements analysis and specification
    • Requirements Engineering, Use Case Models, Activity Diagrams.

  • Compared to some formal vs traditional approaches to specification
    • Use Case Model vs User
    Stories


CO3008 Lecture 10 - Guest Speakers - DWP
