Lecture Documents¶

CO3404 Lecture 1.pdf (Sliders 1 - 18)

Lecture Continued in CO3404 Lecture 2 - Introduction Continued)

Written Notes¶

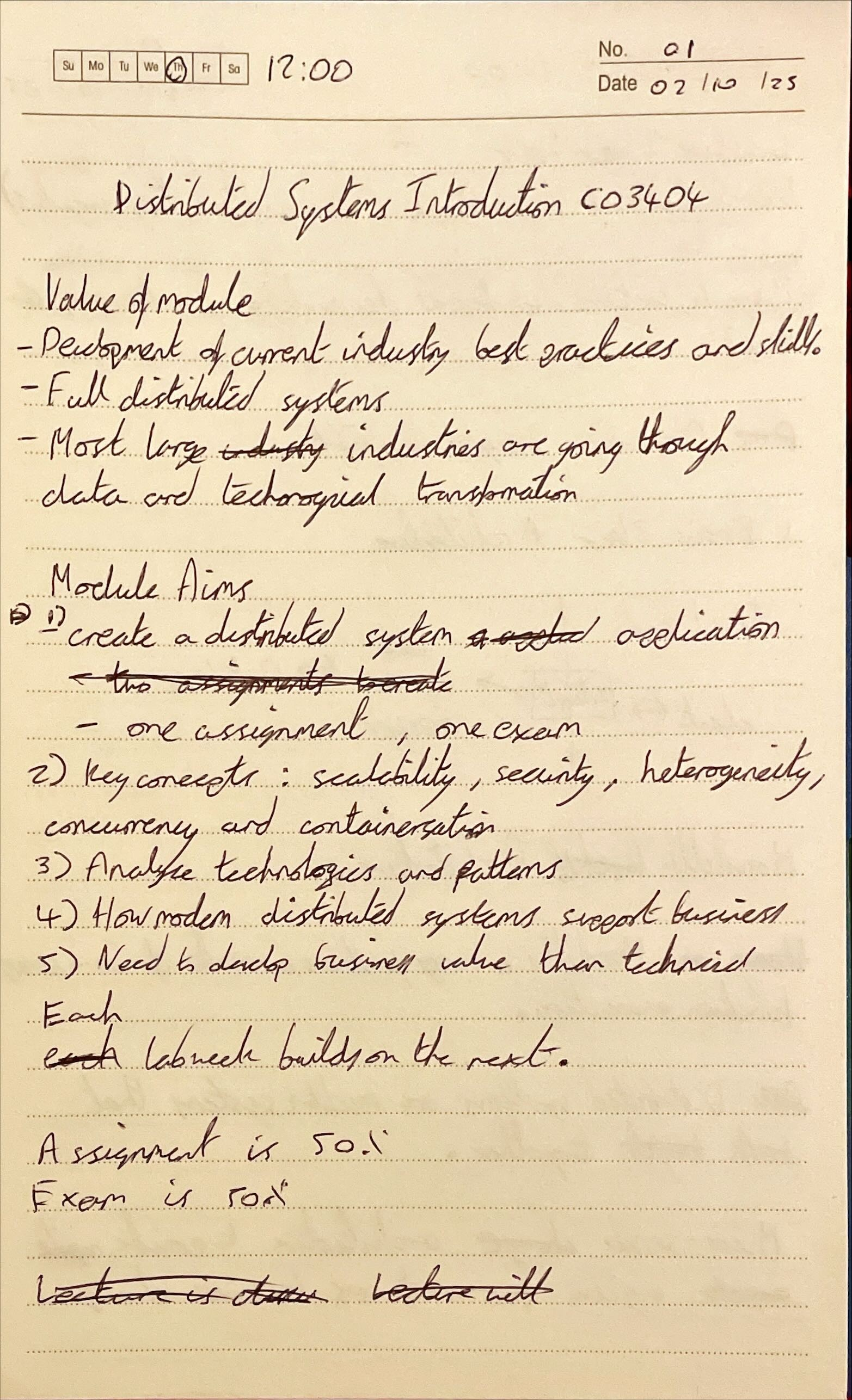

CO3404 Lecture 1 - Note 1.png

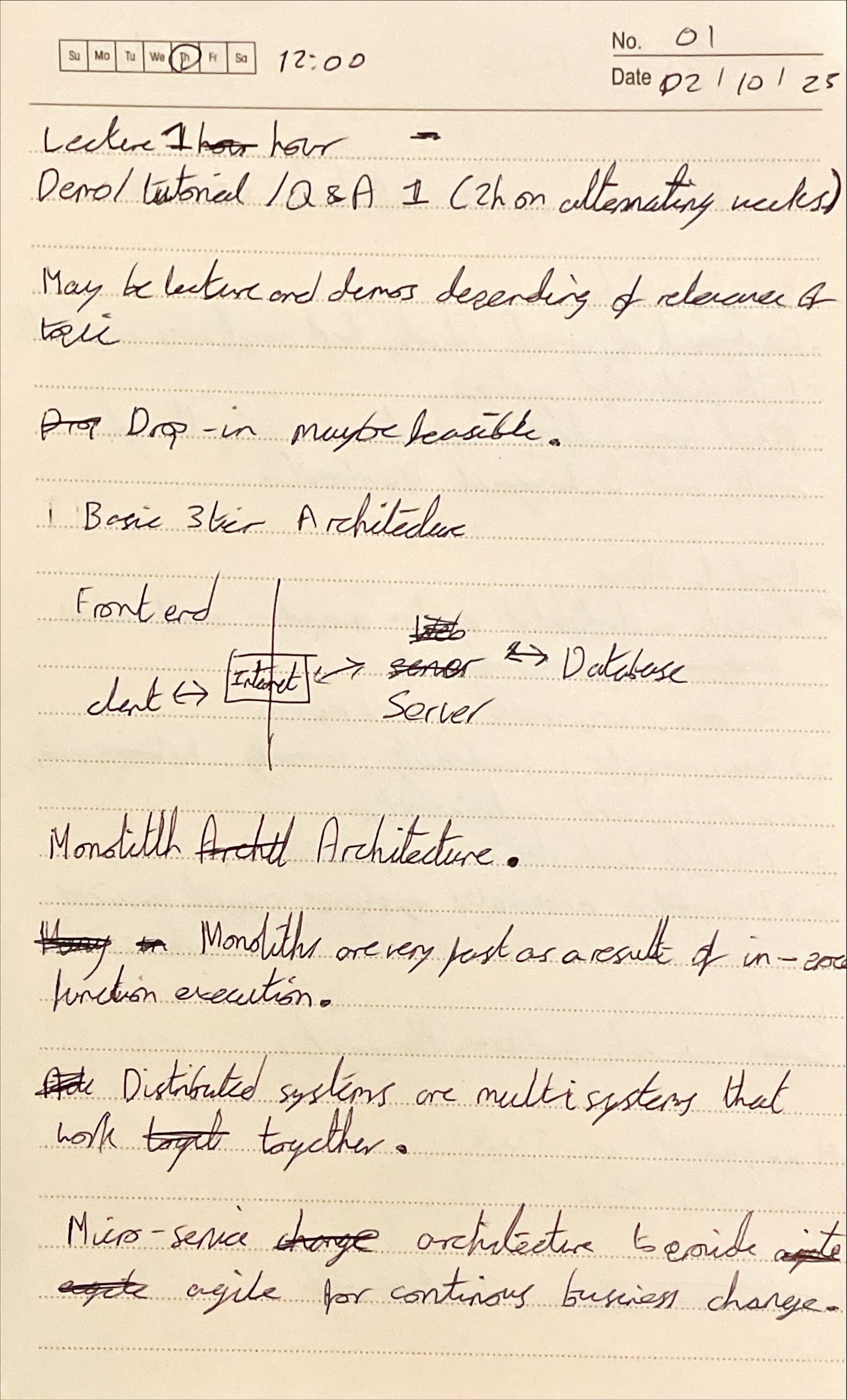

CO3404 Lecture 1 - Note 2.png

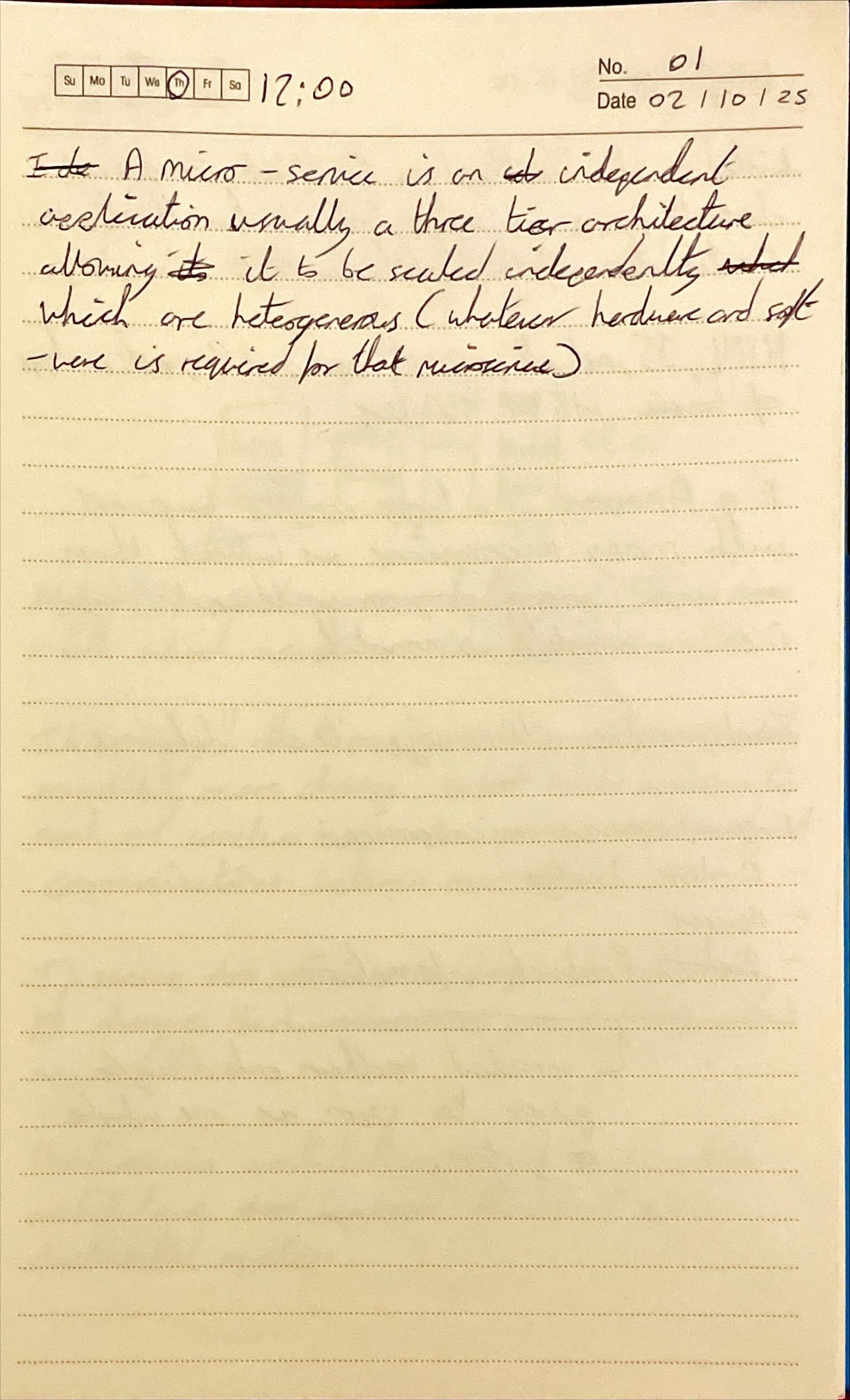

CO3404 Lecture 1 - Note 3.png

Value of Module¶

Provide knowledge of current industry best practices and standards
Distributed Modelling described in terms of large enterprises/organisations/governmental departments. (e.g. Amazon, DWP, Asda, Banks, etc)
This module does not focus on past technologies and concentrates toward the current & the future.

Job Prospects¶

Areas Covered by this Module:
- RESTful
- Node.js
- NoSQL
- REST
- OAuth
- Azure
- JavaScript
- Kafka

Module Aims Summary¶

1) Create a distributed-system application.
2) Key design concepts: scalability, security, heterogeneity, concurrency, and containerisation.
3) Analyse technologies and patterns.
4) How modern distributed systems support business
5) The need to deliver business value rather than technical perfection

Assignment Weighting: 50% Assignment, and 50% Exam.

Learning Pyramid¶

flowchart TD
    subgraph Pyramid [The Learning Pyramid]

        %% Passive methods
        subgraph Passive [Passive Learning Methods]
            A1["Lecture - 5% ▸ Valuable but can't rely on them alone"]
            A2["Reading - 10% ▸ Re-read slides (comprehensive). ▸ Research areas needing detail"]
            A3["Audio Visual - 20% ▸ Watch videos carefully. ▸ 1 hour video ≠ 1 hour — pause & research"]
        end

        %% Active methods
        subgraph Active [Active Learning Methods]
            B1["Demonstration - 30% ▸ Weekly practical demos provided. ▸ Do the demos yourself to learn actively"]
            B2["Group Discussion - 50% ▸ Collaborative quizzes, peer interaction"]
            B3["Practice by Doing - 75% ▸ Lab exercises & problem-solving. ▸ Experiment with demo code. ▸ ESSENTIAL for retention & assignments"]
            B4["Teaching Others - 90% ▸ Interactive sessions. ▸ Answering questions strengthens learning."]
        end
    end

    %% Flow (top-down pyramid)
    A1 --> A2 --> A3 --> B1 --> B2 --> B3 --> B4

_{In summary: The slides state that it is essential to practice to succeed.}

Basic 3-Tier Client-To-Server Architecture Monolithic¶

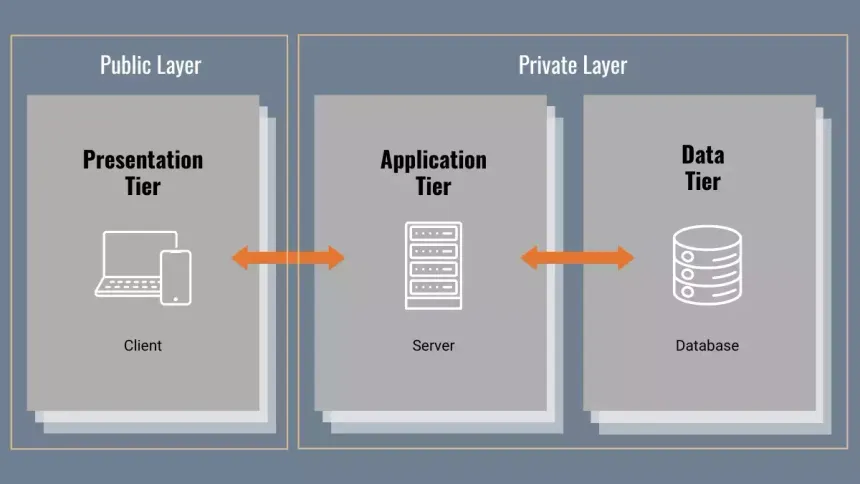

CO3404 AWS 3-Tier Architecture.png
_{3 Tier Architecture Diagram}

sequenceDiagram
    participant Client
    participant DNS
    participant Internet
    participant WebServer

    Client->>DNS: Lookup domain (www.example.com)
    activate DNS
    DNS-->>Client: Return IP address
    deactivate DNS

    Client->>Internet: Request webpage (via IP)
    activate Internet
    Internet->>WebServer: Forward HTTP request
    activate WebServer

    WebServer-->>Internet: Return HTML
    deactivate WebServer
    Internet-->>Client: Deliver HTML

    activate WebServer
    WebServer-->>Internet: Return CSS
    deactivate WebServer
    Internet-->>Client: Deliver CSS

    activate WebServer
    WebServer-->>Internet: Return favicon.ico
    deactivate WebServer
    Internet-->>Client: Deliver favicon.ico
    deactivate Internet

_{Example Sequence Diagram for 3 Tier Web Server}

Monolithic Architecture¶

ChatGPT Summary on Monolithic Architecture

A monolithic architecture is essentially one large program. Even if it’s designed to be modular, in practice it often can become a single behemoth containing hundreds of thousands, or even millions, of lines of code. Typically, the application relies on a single database. This makes managing data straightforward, ensures strong consistency, and often delivers good performance.

For resilience, the monolith may run on a cluster of servers. But scaling becomes inefficient: when demand grows in just one area of the system, the entire application must be replicated. The problem is not that monoliths are slow—quite the opposite, they can be highly performant because everything runs in-process—but their size and complexity create real challenges.

Code changes are risky because the system is tightly coupled. A small change in one part of the application can create unexpected consequences elsewhere. To avoid this, organisations are forced to perform full regression testing—both functional and performance testing—every time changes are introduced. These test cycles can take months. As a result, improvements are often delayed, and users are left to find workarounds until the next major release.

That said, monoliths are not inherently bad. For smaller systems, such as a simple website for a small business, a monolithic approach is perfectly reasonable. The codebase is small enough to understand and test, and updates can be delivered without months of overhead.

The challenge arises in large organisations such as Tesco, Amazon, Netflix, or government departments. Their platforms are huge, their business processes complex, and their user bases massive. They need to adapt quickly to shifting customer needs, market forces, or government policies. For them, waiting six months or more to release changes is unacceptable. This is where the limitations of the monolithic approach become painfully clear, and why a new architectural style—such as microservices—has emerged.

CO3404 Lecture 2 - Introduction Continued
