CO3519 Lecture 11 - Introduction to Advanced Artificial Intelligence

Lecture Documents¶

CO3519 Lecture 12.pdf

Learning Objectives¶

• Introduce and familiarise with the basics of deep learning
• Introduce and explain how multi-perceptrons work
• Understanding about the problems in each NN (Neural Network) followed by CNN

Lecture Contents¶

• Abstract Neuron Model
• Multilayer Perceptrons (MLPs)
• Feedforward Neural Networks
• Backpropagation Algorithm
• Importance of Weight Initialisation and Learning Rate
• Convolutional Neural Networks

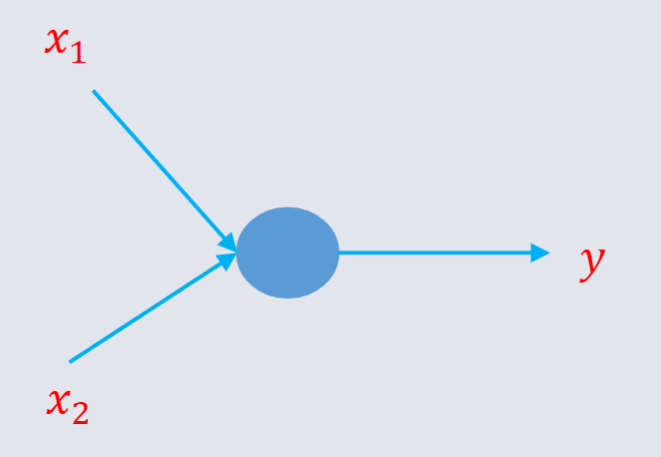

Abstract Neuron Model¶

Neuron in a model processes the information by taking inputs and applying weights to them, adding a bias then finding whether it should activate based on the result.

$\(y=\theta^Tx\)$
x is the vector of inputs to the neuron
theta is the vector of weights (also called a pattern or filter)
theta^T*x is the dot product between the weights and inputs.

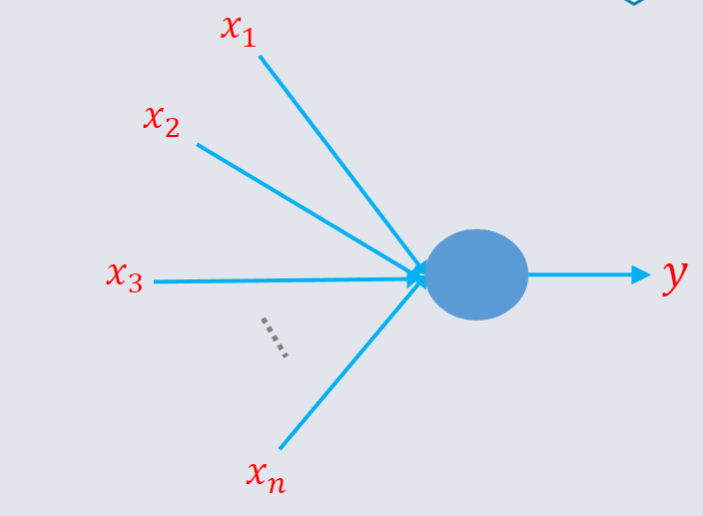

_{Neuron Model Diagram}

Bias is added to the weighted sum which helps the neuron adjust its threshold for activation.

Artificial Neural Network¶

Problems with a Single Perceptron¶

Single-layer perceptron's can only solve linearly separable problems (Step Function, Linear Function).

An MLP can be defined as a combination of many neurons.

Multi-layer Perceptrons (MLPs) with hidden layers can approximate complex functions using non-linear activation functions.

Feedforward Propagation¶

Data flows in one direction, from the input layer through one or more hidden layers to the output layer.

_{Feedforward Diagram with h^n layers}

Feedforward Deep Network Components¶

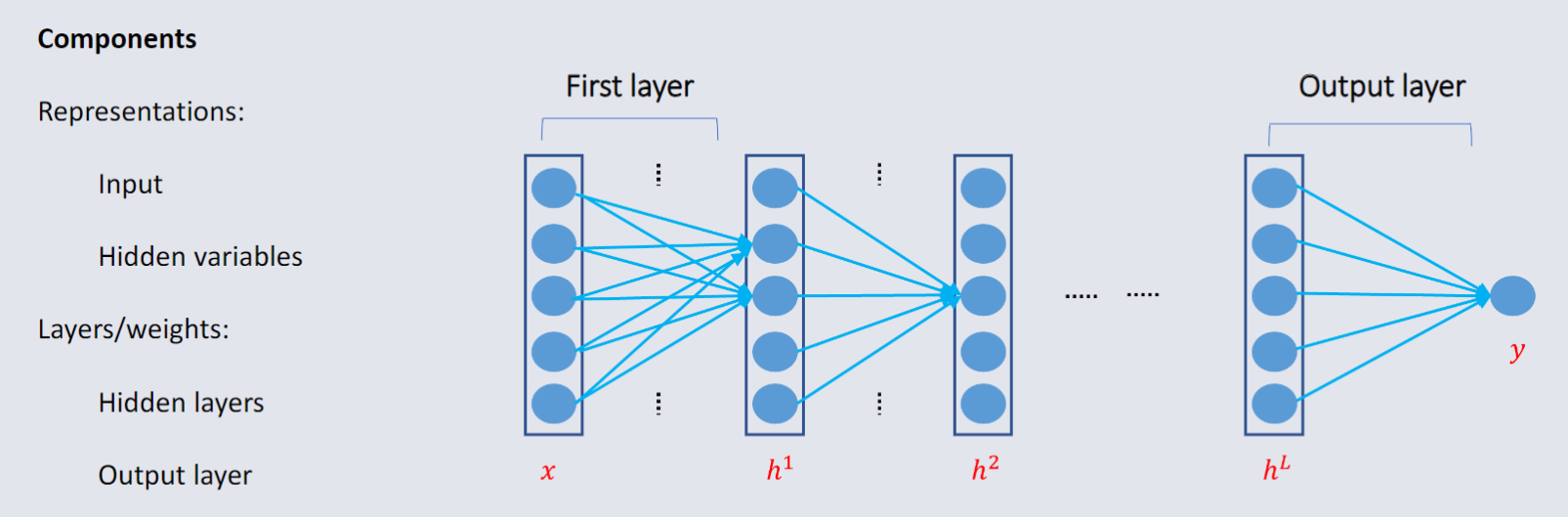

_{Feedforward Propagation Components}

Input Layer¶

The model receives raw features from the image, which is represented as a vector.

Hidden Layer¶

Early hidden layers might detect low-level features i.e. edges, textures or gradients and are represented as a vector.

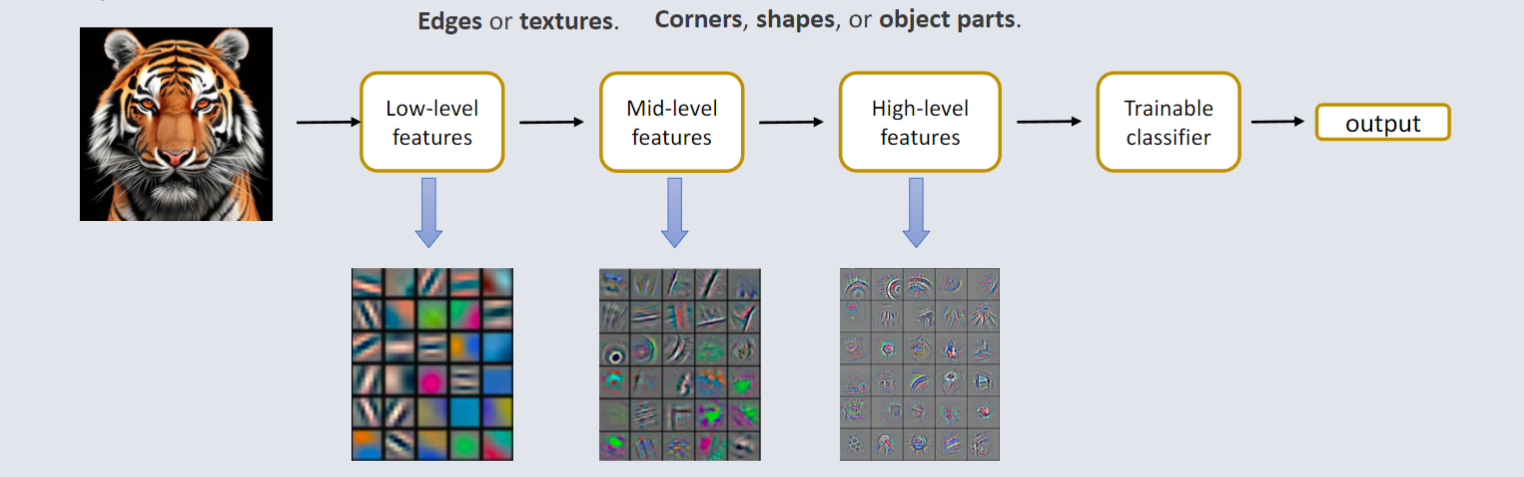

_{Hidden Layer Process}

Hierarchy if representations with increasing level of abstraction each stage is a kind of trainable nonlinear feature transform.

Image Recogniton
pixel -> edge -> texton -> motif -> part -> object

Text
Character -> word -> word group -> clause -> sentence -> story

Output Layer¶

The output layer produces the final prediction.

The number of neuron depends on the task.

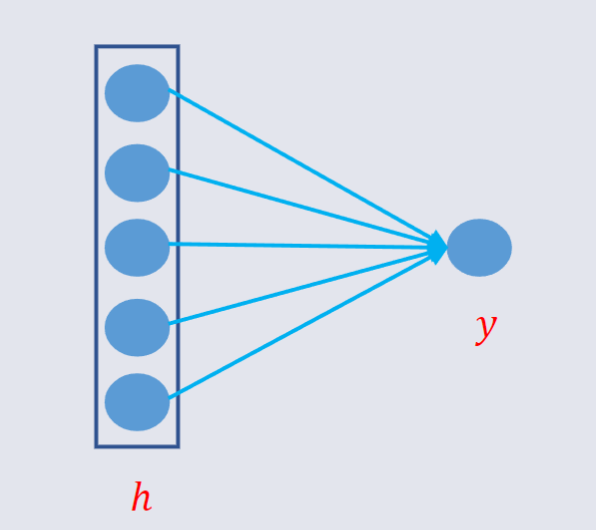

Regression¶

Regression - 1 neuron with linear activation function.

$$ y = w^th +b$$
Linear units - no nonlinearity.

_{Regression Output Layer}

Multi-Layer Regression¶

n neuron with a linear activation function.
$$ y = w^Th+b $$
Linear units - no nonlinearity.

Binary Classification¶

1 neuron with a sigmoid activation function
$$ y = sigma(w^Th+b) $$
Linear units - no nonlinearity.

Multi-Class Classification¶

n neurons (one per class) with a softmax activation function.

y = softmax(z) where z =
$$ z = W^Th+b $$
Example: Classify handwritten digits.

Activation Functions¶

Considering a neuron.

The value y can be anything ranging from -inf to +inf.
The neuron doesn't really know the bounds of the value.
How to know whether the neuron should fire or not?

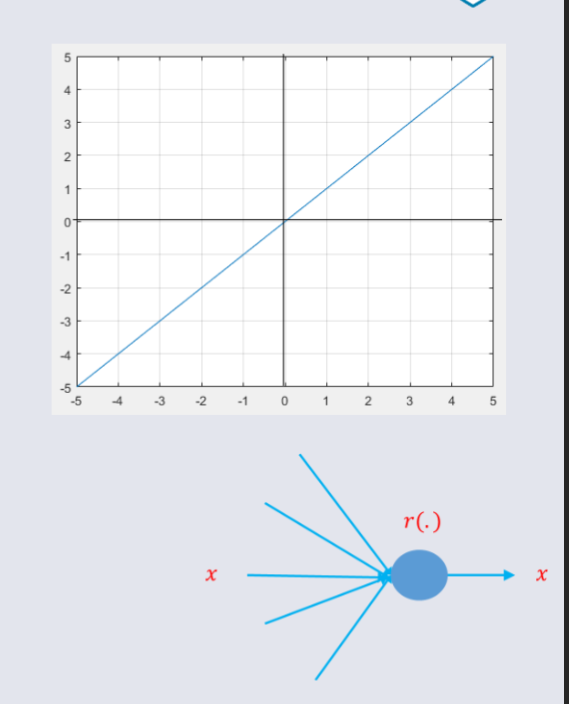

Linear Function¶

A straight line function where activation is proportional to input:
$$ f(x) = cx $$
Not appropriate for modelling complex nonlinear functions.

Sigmoid Function¶

If the value of Y is above a certain value declare it activated.

if sigmoid (x) >= 0.5 predict class 1.
if sigmoid (x) < 0.5 predict class 0.

Often used in binary classification tasks where a threshold of 0.5 is used to make decisions.

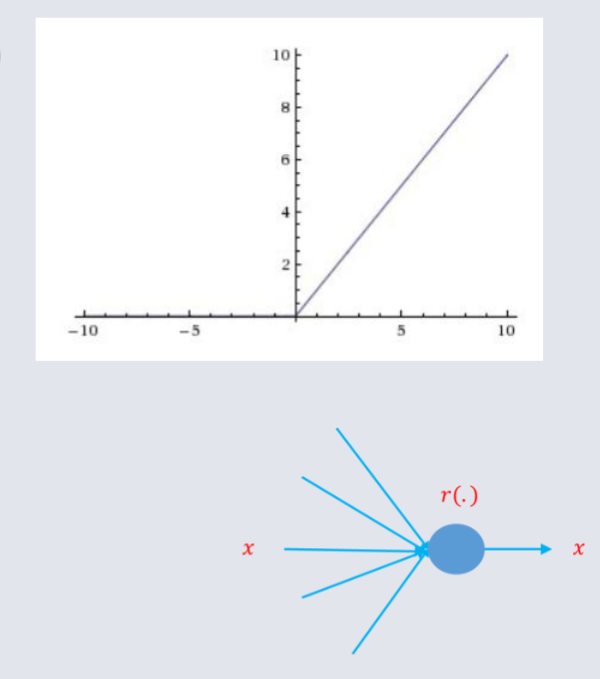

ReLu (Rectified Linear Unit) Function¶

It is a non-linear function and is capable of modelling complex functions.

$$ f(x) = max(0,x) $$
For any input x > 0 the output is x (no change).
For any input x <= 0 the output is 0 (the neuron is 'turned off').

The range of ReLu is [0, inf].
It ensures sparsity of activations.

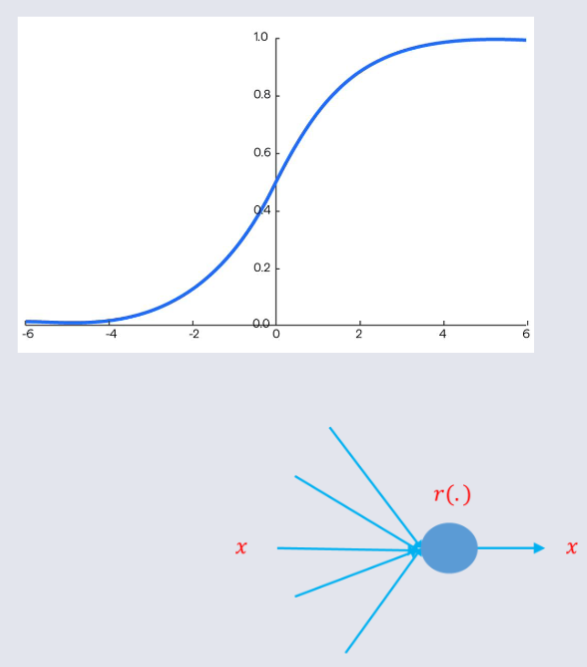

Softmax Function¶

In softmax the output is a vector of probabilities and there isn't a single threshold used in the same way as sigmoid.

Thresholding can be applied during classification:
$$ mathrm{softmax}(x_i) = frac{e^{{x_i}}{sum_{j=1}} $$} e^{x_j}

For multi-class classification after applying softmax typically the class with the highest probability is selected as prediction.

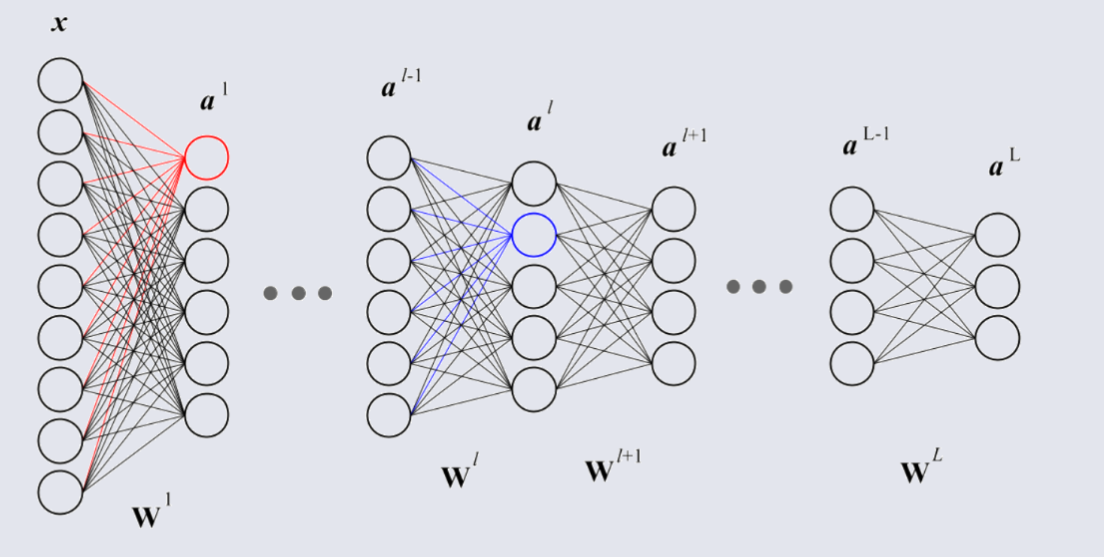

Problem with Forward Propagation¶

MLPs have many weights and biases so how can they be updated to reduce error?

_{Forward Propagation Problem}

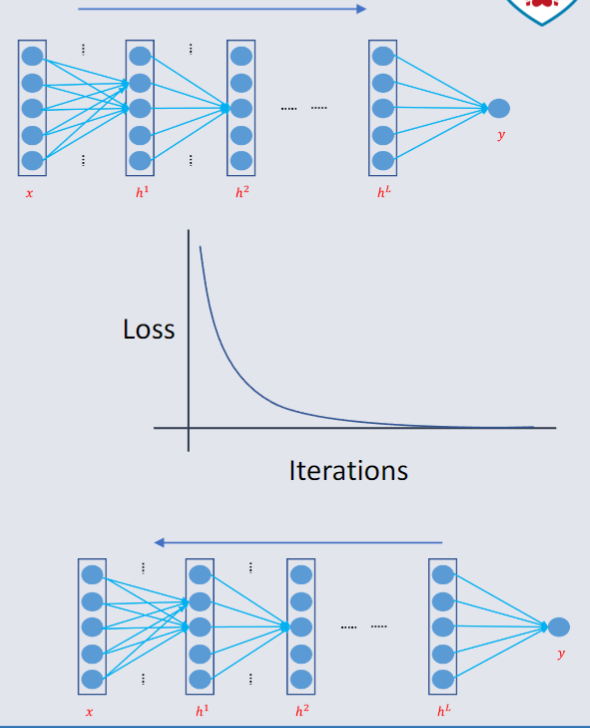

Backpropagation¶

Solution - Backpropagation calculates the gradients of the loss with respect to each weight and bias.

Backpropagation is a common method for training a neural network.

By optimising weights so that the neural network can learn how to correctly map arbitrary inputs to outputs.

Steps¶

1) Do forwards propagation
2) Compute the Loss/Error (for instance, MSE)
3) Backward Pass
- Use the chain rule to compute gradients
- Adjust weights and biases
4) Repeat forward and backward passes to reduce the loss over time.

What is the problem with Deep ANN (Deep Artificial Neural Network)¶

• Consider an image classification problem of an indoor/outdoor scene)
• Image size is 64 x 64 x 3 = 12288 (input layer)
• Two hidden layers h1 = 1000 neurons, h2 = 500 neurons
• Outputs = 2 neurons (one for each class)

How many parameters would need to be trained?
input layer -> h1 -> h2 -> output layer ->
12288 x (1000) + (1000 x 500) + (500 x 2) = 12789000
(12.7 million) very small image and very small network.

+1000 × 1000 ← L1 → L2
+1000 × 1000 ← L2 → L3
+1000 × 1000 ← L3 → L4
+1000 × 1000 ← L4 → output
= 200,608,000

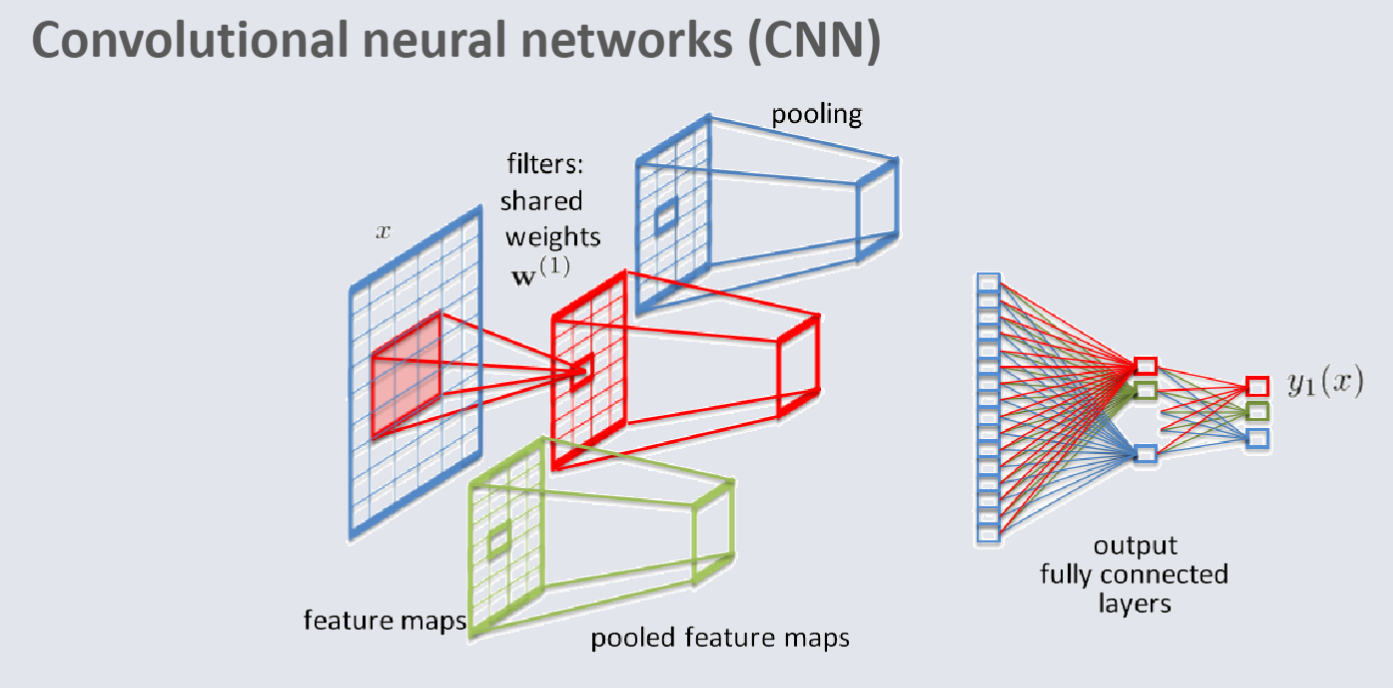

The Solution? CNN (Convolutional Neural Networks)¶

Brief Information about CNN¶

Yann LeCun
Yoshua Bengio

Next Week¶

Convolutional Neural Networks (CNNs) Basics
Introduction to CNNs. Why are CNNs effect for image data?
Key Components:
- Convolution Layers
- Pooling Layers
- Filters
- Stride
- Padding

CO3519 Lecture 13 - Convolutional Neural Network I
