CO3519 Artificial Intelligence
CO3519 Lecture 3 - Machine Learning I

Lecture Documents¶

CO3519 Lecture 4.pdf

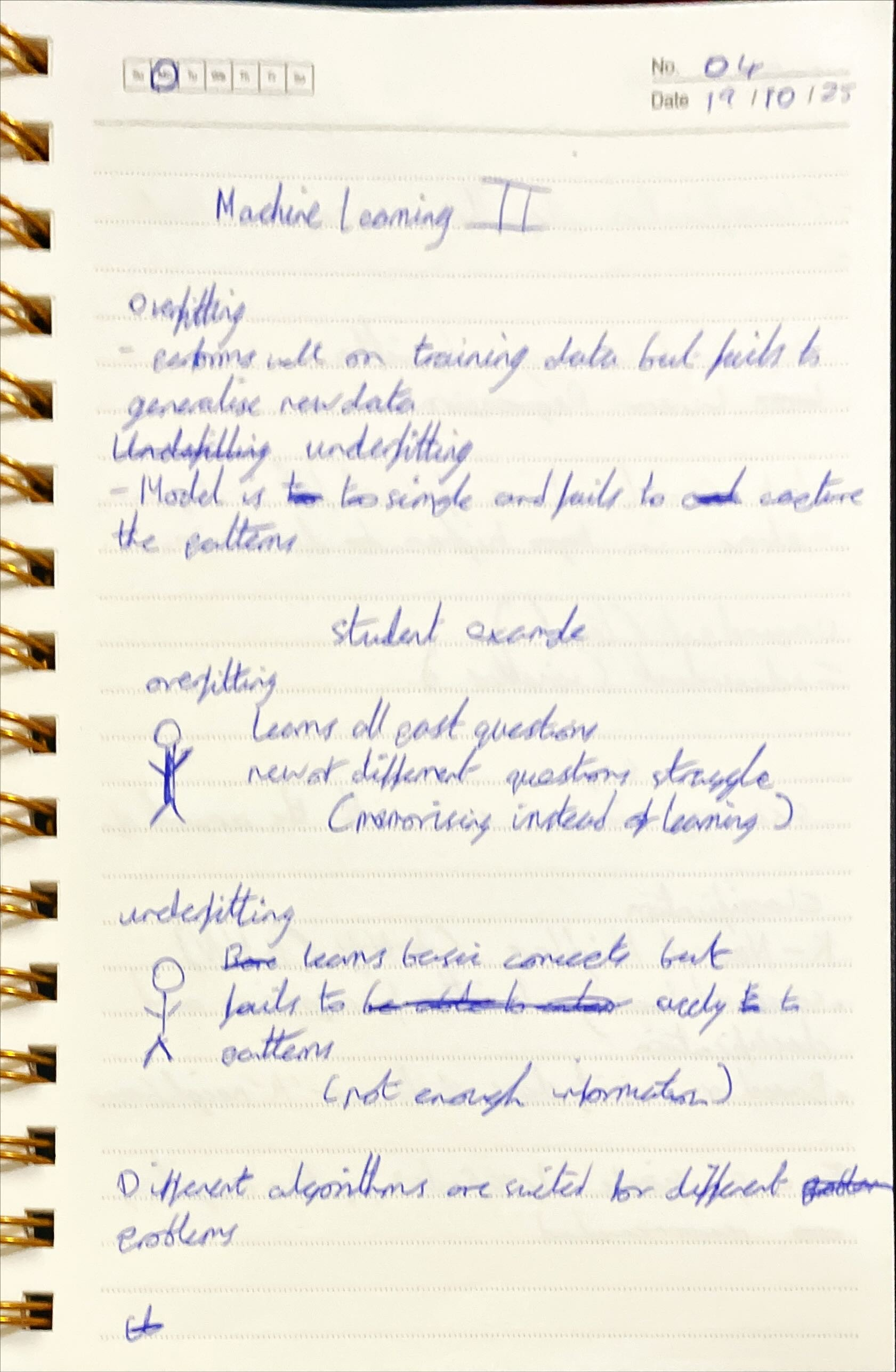

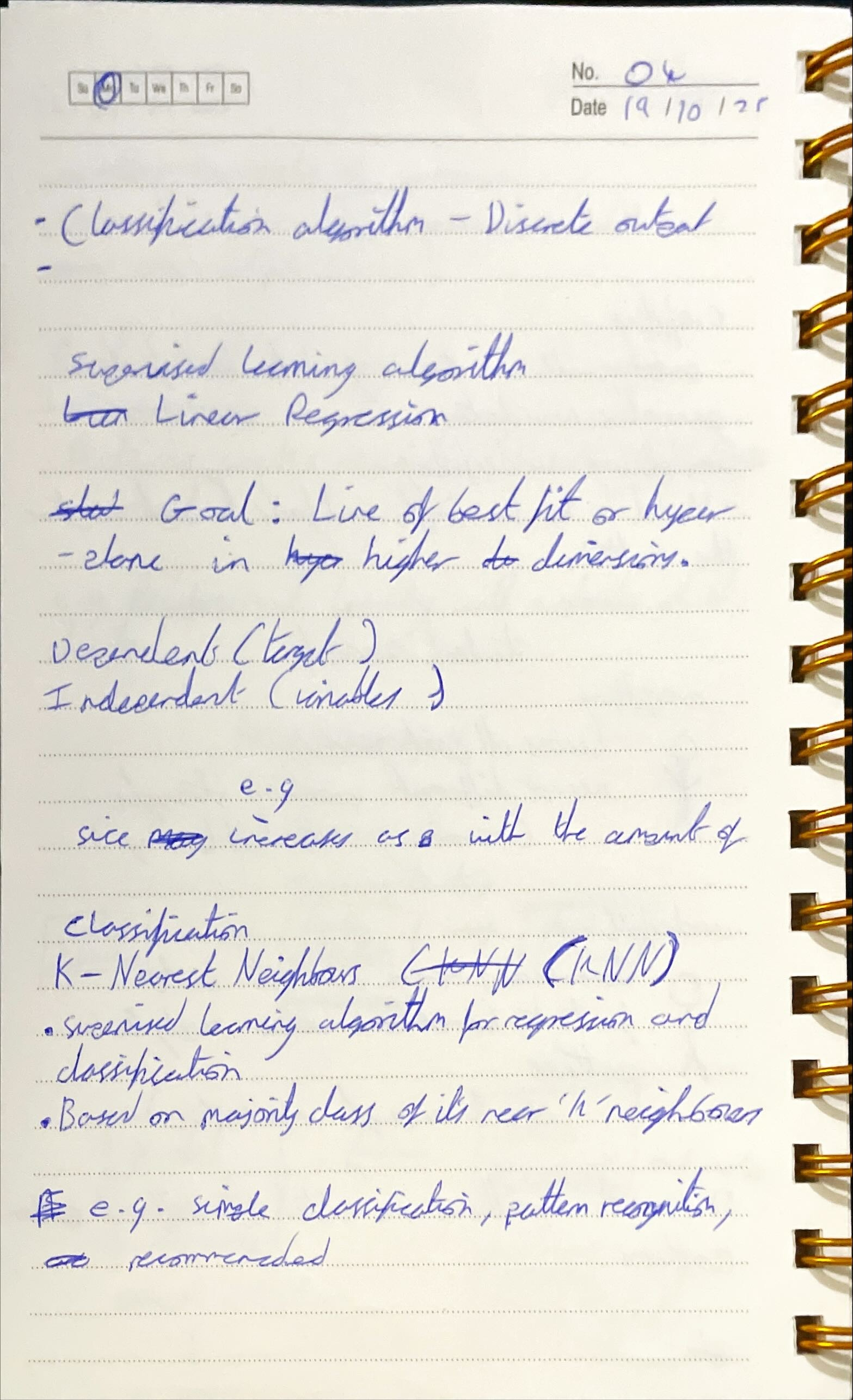

Written Notes¶

Lecture Contents¶

• Key Challenges/Concepts
• Overfitting VS Underfitting
• Bias-Variance Trade-off
• Supervised Learning Algorithm

Overfitting VS Underfitting¶

Overfitting¶

• The model performs well on the training data but fails to generalise new data.
• Usually occurs when the model learns noise or irrelevant details.

For Model Training¶

• Model is too complex (i.e. Massive number of layers or DT with too many trees.)
• Perfectly fit, capturing even the smallest variations/noise but fails to generalise (memorises instead of learning)
• Training Accuracy is very high but the Test Accuracy is much lower.
• A decision tree that splits the data repeatedly until each leaf node has only one data point.

Underfitting¶

• The model is too simple and fails to capture the patterns in the data leads to poor performance even on the training data.
• Model is too simple (Very few layers, or DT with few trees)
• Happen if using a linear model for a dataset that has non-linear patterns.
• Training Accuracy and Testing Accuracy are low because the model fails to learn the relationships between the features and the target.

Key Challenges Diagram¶

flowchart LR
S1[Overfitting Student]
S2[Underfitting Student]

S1 --> S1A1[Memorises exact question answers from past exam]
S1 --> S1A2["Final Result: When the same questions as revised does great however different questions (i.e. new data) will struggle."]

S2 --> S2A1[Barely studies might only learn the very basic concepts]
S2 --> S2A2[Final Result: Will struggle even if the exam has the same questions, due to a lack of knowledge to answer.]

Algorithms¶

Different algorithms are suited for types of problems.

Supervised Learning - Classification - Discrete Outputs¶

K-Nearest Neighbours (KNN)¶

• Supervised learning algorithm used for both regression and classification.
• Based on the majority class of its nearest 'k' neighbours.

Example Applications: Simple classification, pattern recognition, recommendation system, etc.

• KNN tries to predict the correct class for the test data by calculating the distance between the test data and all the training points.
• Select the K number of points which is closest to the test data.

KNN Steps¶

1) Select the number K of the neighbours
2) Calculate the Euclidean distance of K number of neighbours
3) Take the K nearest neighbours as per the calculated Euclidean distance.
4) Among these k neighbours count the number of data points in each category
5) Assign the new data points to that category for which the number of neighbour is maximum.

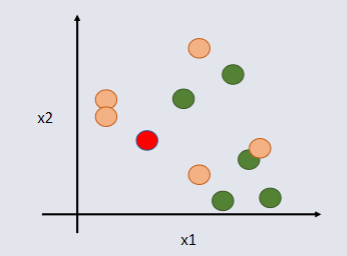

KNN Example - Shop Example¶

Imagine owning a shop with two types of customers: those who buy Yellow t-shirts and those who buy Green t-shirts. The Red data point represents a new customer. By looking at which group of existing customers is standing closest to the Red point, the algorithm predicts which shirt the new customer is most likely to purchase.

In the following example K the amount of neighbours will be 4.

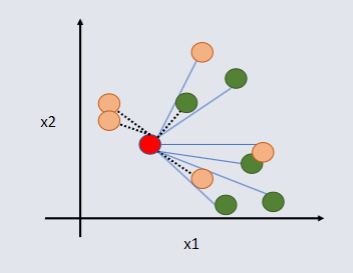

The Euclidian distance is calculated between the Red data point and the closest existing customers.

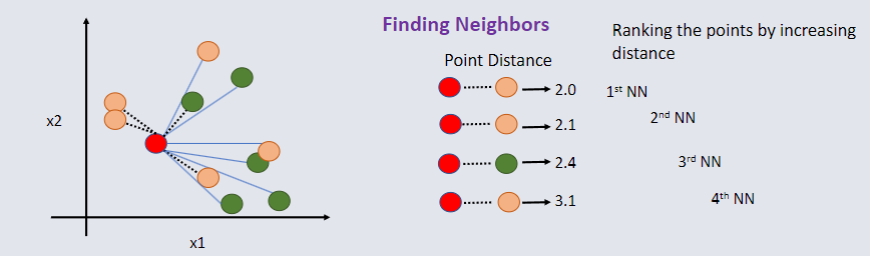

Once the distances are calculated, the values are ranked in descending order.

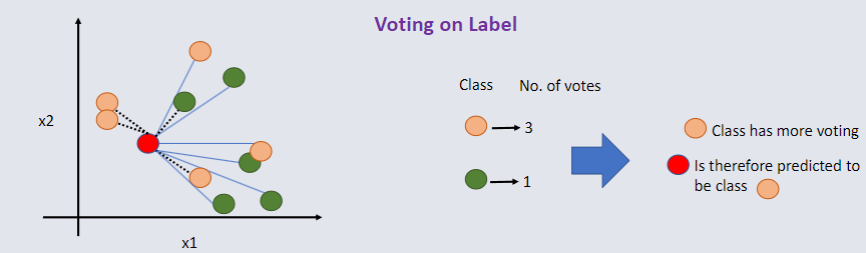

The votes are counted based on the class majority of K neighbour's distances with the closest majority class distance to the red data point, therefore the red data point (the new customer) will purchase the Orange t-shirt.

Supervised Learning - Regression - Continuous Outputs¶

Linear Regression is a statistical method used to model the relationship between a dependent variable and one or more independent variables.

The Goal¶

Find the best-fitting line (or hyperplane in higher dimensions) which predicts the dependent variable based on the existing independent variable(s).
Dependent Target - Outcome that is wanted to be predicted. (e.g. A house price)
Independent Predicator - Variable used to make predictions. (e.g. Square Foot, Number of Bedrooms, etc)

Equation of a line: y = mx + b
y - dependent variable
m - slope of the line (change in y for a unit change in x)
x - independent variable
b - y-intercept (value of y when x = 0)
