CO3519 Artificial Intelligence
CO3519 Lecture 4 - Machine Learning II
Lecture Documents¶
Written Notes¶
Book Forgotten
Primary notebook has been forgotten at home and therefore no physical notes were able to be made during this lecture.
Lecture Contents¶
- Supervised Learning Algorithms - Classification
- Support Vector Machines (SVM)
- Approaches which SVM works/use
- Underlined concepts
Support Vector Machines¶
What are SVMs¶
- Developed in the 1990s by [Vladmir N. Vapnik & Colleagues]
- Powerful machine learning algorithm widely used for both linear & non-linear classification, as well as regression and outlier detection tasks.
- SVMs are highly adaptable, making them suitable for various applications such as:
- Text classification
- Image classification
- Spam detection
- Handwriting detection
- Gene expression analysis
- Face detection
- Anomaly detection

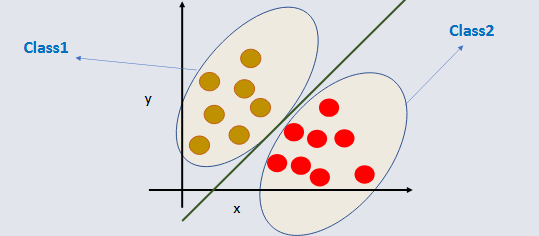

The idea behind SVM is to find a boundary (or decision boundary) that best separates data points of one class from data points of another class.

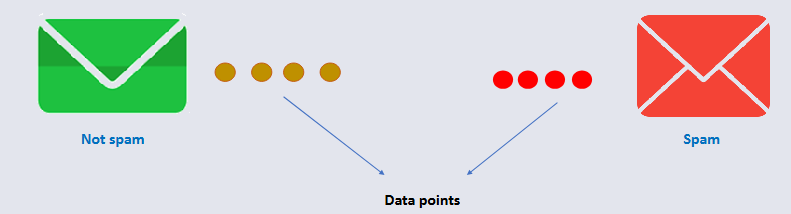

Example Scenario - Email Spam Detection¶
- Imagine building a system to classify (spam & not spam)
- Algorithms to classify incoming emails as either spam or not spam.
Emails incoming spam and not spam contents are the data points.
Goal - Model can learn to distinguish between these two classes using patterns in past emails.
Here are some features for each email that may be suspicious:
- X1 - Frequency of the word free.
- X2 - Frequency of the word urgent.

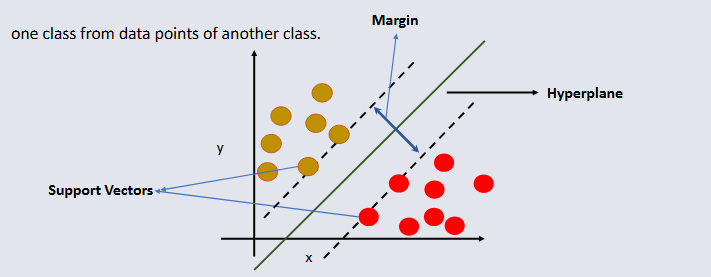

SVM selects the line (hyperplane) that maximises the margin between two classes (spam and not spam).
This maximises the confidence in the classification.
Why Maximise the Margin¶
- A wider margin reduces the risk of misclassifying emails
- Helps to better generalise new emails.
Equation of Hyperplane¶
$$
mathbf{w} cdot mathbf{x} + b = 0
$$
where \(\mathbf{w}\) is the weight vector and \(b\) is the bias.
Non-Linearly Separable¶
Problem with Linear Boundaries:
- FER (Facial Expression Recognition) - i.e. Imagine building a model to classify facial expressions into six categories. (Angry, Happy, Sad, Neutral, Fear, and Surprise)
- Each face image can be represented by features such as:
- Edge Patterns
- Texture
- Texture Brightness
- Key Points on Face (e.g. Position of eyebrows, mouth, etc)
Challenge with FER
These six expressions may not be linearly separable due to overlapping or similar features.
Solution with Kernels¶
SVM can use a kernel function to map the data into a higher-dimensional space wwhere it becomes easier to separate.
Radial Basis Function (RBF) Kernel¶
- Useful for non-linear data - helps separate classes by creating a more flexible decision boundary.
One-Vs-One Strategy¶
- SVM can classify pairs of expressions at a time. (e.g. one SVM model might classify "happy" vs "sad", another "angry" vs "neutral", etc for all combinations of emotions)
One-Vs-All Strategy¶
- Score for each class is computed based on the output of the respective binary classifier that was trained to distinguish that class from all others.
