CO3722 Data Science
CO3722 Lecture 2 - Ethics

Lecture Documents¶

CO3722 Lecture 3.pdf

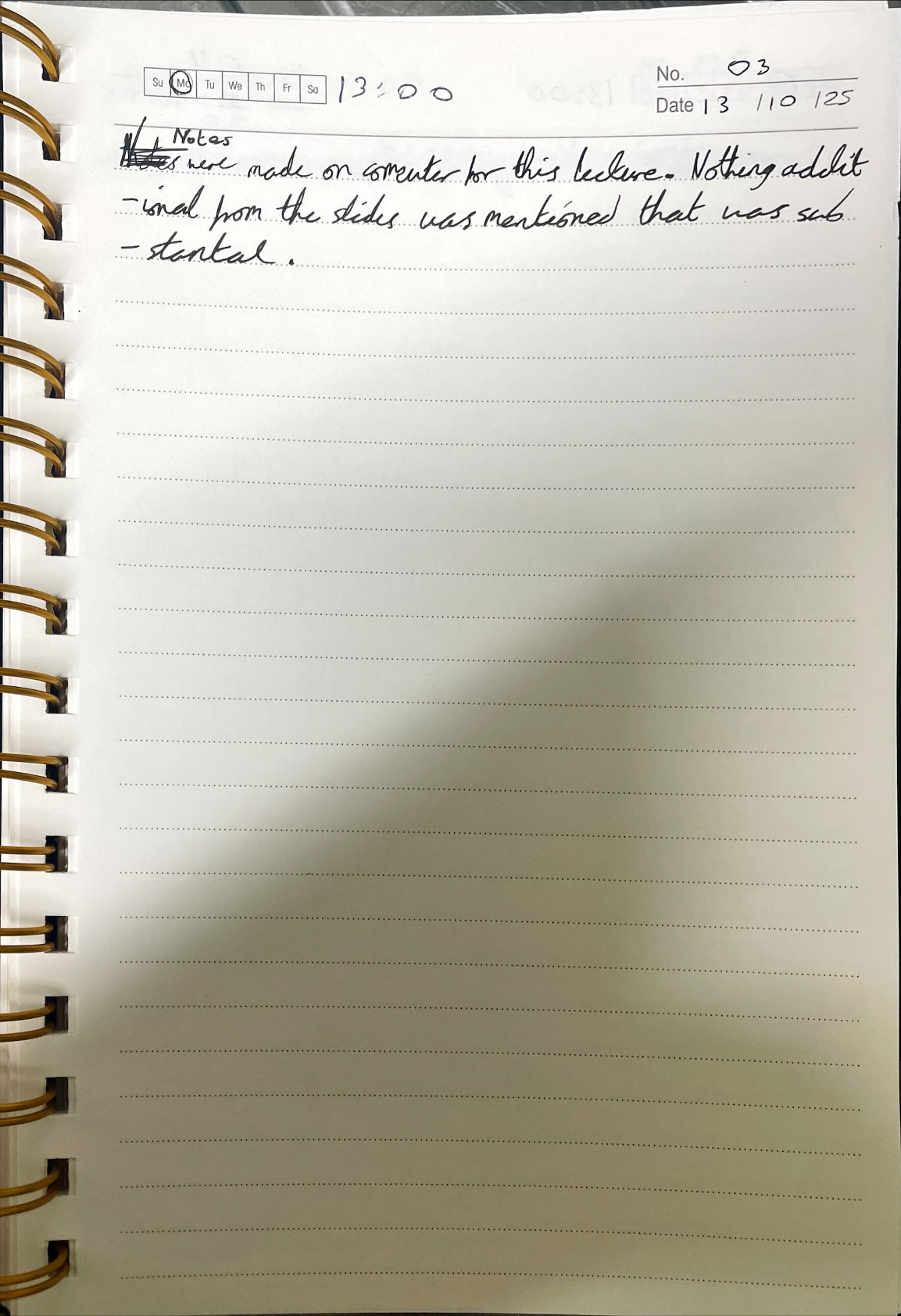

Written Notes¶

Learning Objectives¶

• Discuss Data Analysis Design
• Evaluate Tools for Data Science

Data Analysis¶

• Terms used interchangeably
• Asking intelligent questions
• Finding patterns
• Deriving insight
• Decision making
• Machine learning

Data Science - The Workflow Model¶

flowchart LR
    A[Asking Questions to Identify Problem]
    B[Obtain Data & Process it]
    C[Visualise Processed Data]
    D[Choose Appriopriate Algorithm for Intended Result]
    E[Evaluate the Output]
    F[Attempt Different Approaches]
    G["Compare Results (Chose of Approach to Alternative Appoaches)"]

    A-->B-->C-->D-->E-->F-->G-->A

Stage 1 of Workflow¶

flowchart LR
    A[Collect Information from Various Sources]
    B[Store the Collected Data]
    C["Identify the Targettable Information (From Raw Data)"]

    A-->B-->C

Stage 2 of Workflow¶

flowchart LR
    A[Classification]
    B[Regression]
    C[Clustering]

    A-->B-->C

Classification¶

Assigning data to categories or labels pinpointing key data. Once labels are correct around the problem space, for the business case, the problem set can be assessed.

Algorithms: Decision Trees, Random Forests, Support Vector Machines, Neural Networks.

Regression¶

Focuses on a predictable continuous numerical value within the data. and NOT a category, it finds a relationship between one or more features of the dataset and uses them to reach a numerical target.

Example¶

For this example the regression fits the line which fits through all these data points, which can be used to predict new values.

Clustering¶

Data Science Libraries¶

• NumPy
• Matplotlib
• SciPy
• Scikit Learn
• Statmodels
• Seaborn
• Blaze
• Scrapy
• SymPy
• Bokeh
• PANDAS

Data Science using PANDAS¶

PANDAS has numerous benefits for Data Science:
- Data Analysis & Manipulation
- Extensive Means for Data Analysis
- Methods for Data Filtering
- Fast, Flexible & User-friendly

Data Structures¶

DataFrame & Series form the basic data model.

DataFrame¶

Similar to an Excel Workbook. Columns (indexs) and row numbers.

Series¶

One dimensional Indexed array, allowing for easy access to elements.

Importing Dataset & Libraries¶

import pandas as pd
df = pd.read_csv("dataset.csv") # Reads dataset into DataFrame ready for viewing

Data Exploration¶

df.head(15) # Displays 15 rows

df.describe() # Provides the Mean, Quartile, Count, Min, Max & Standard Deviation as well as outputs.

df['Column_Name'].value_counts() # Accessing a particular column in the data frame
